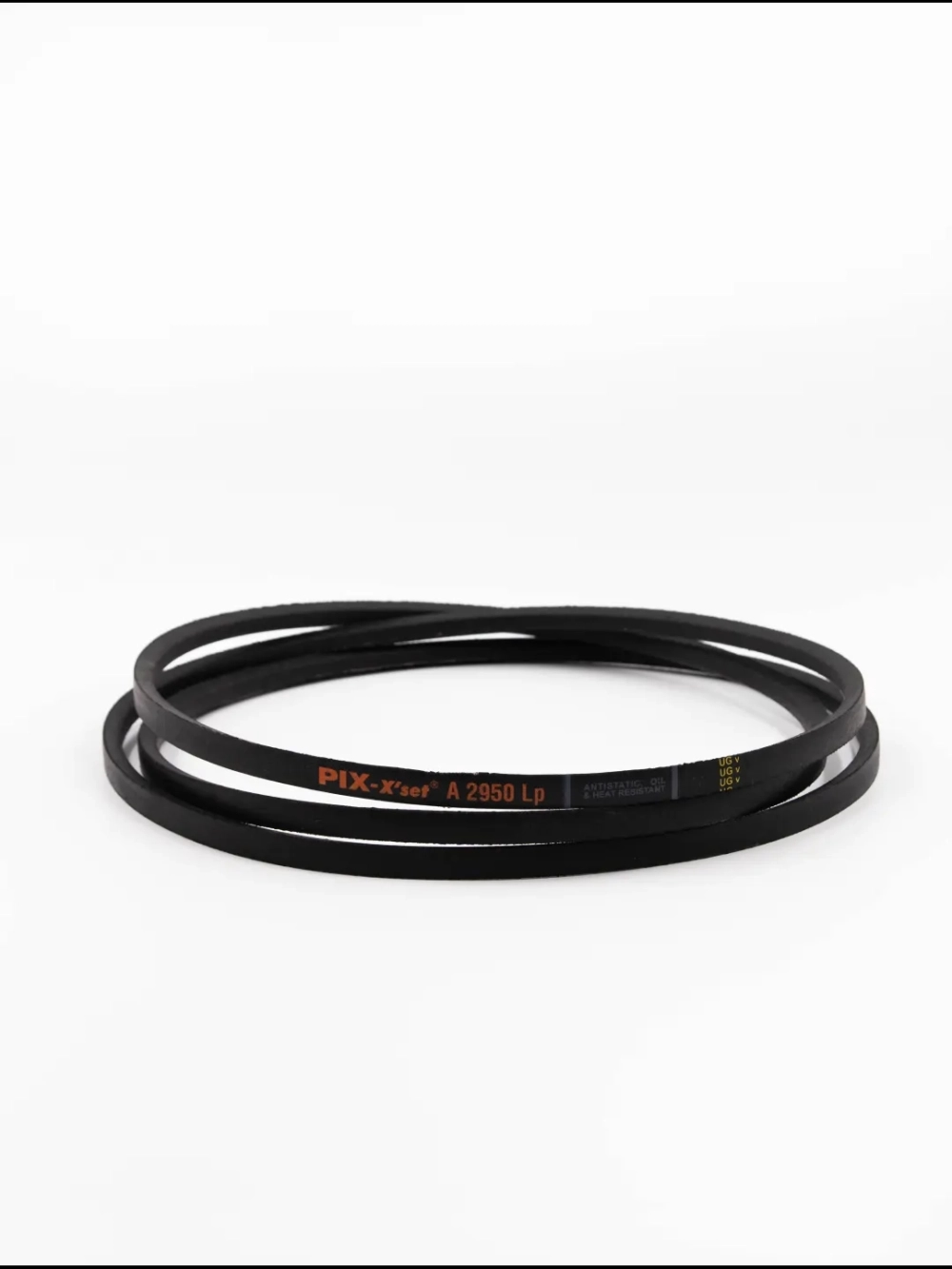

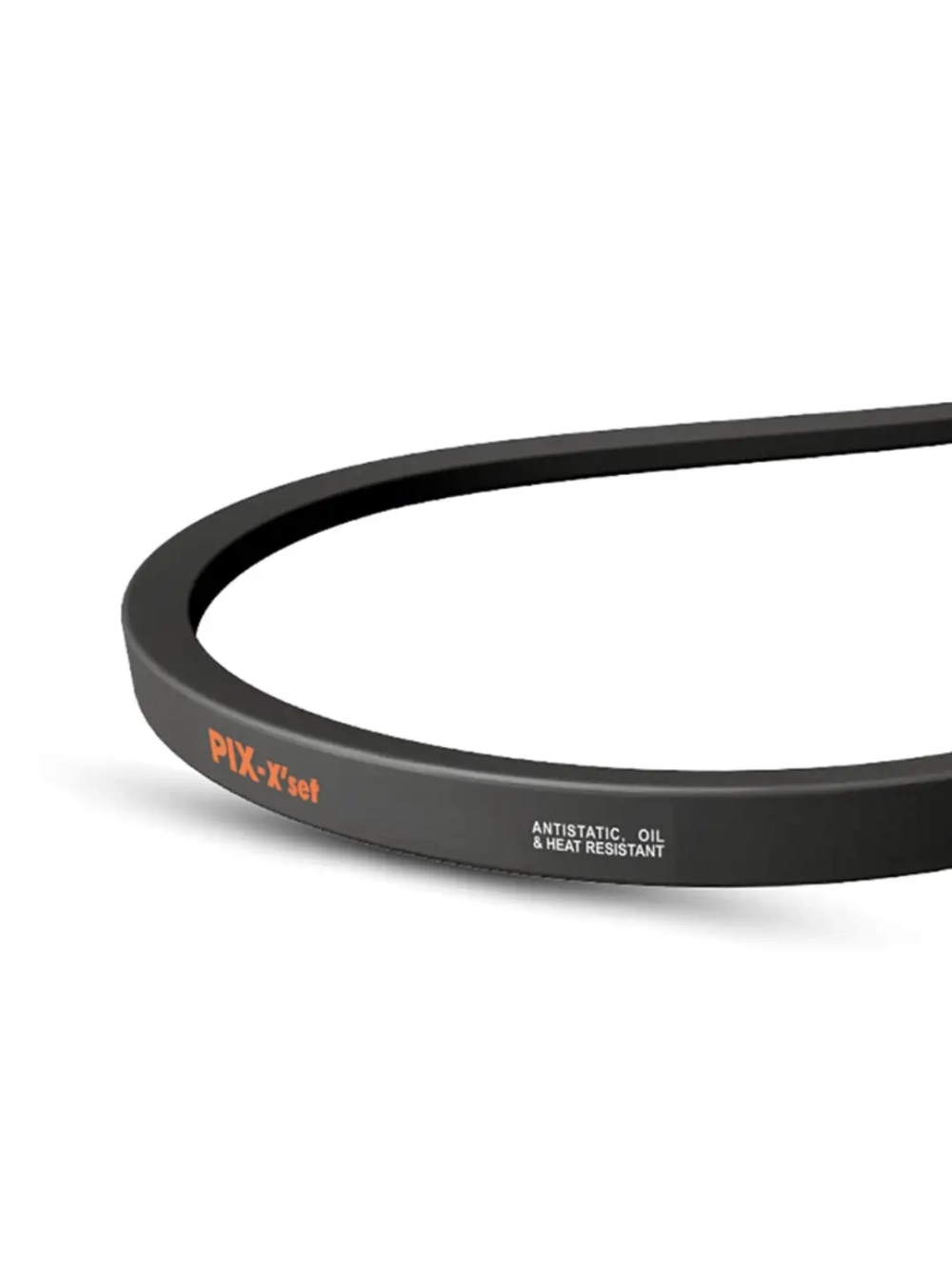

V-belt A 2950 Lp PIX X'set
85 120 UZS
Quantity
About the product:
Brend

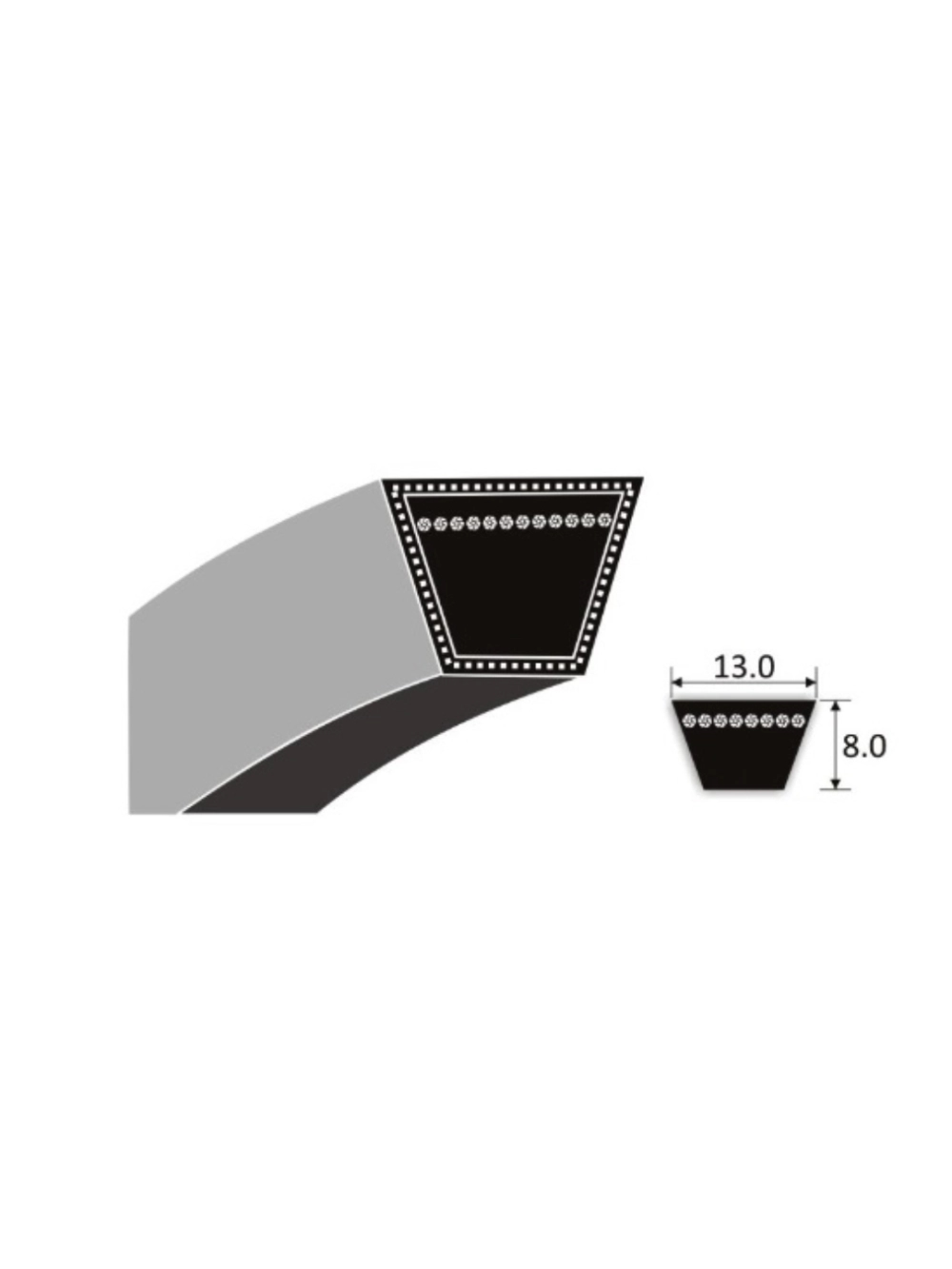

PIXBelt profile
A
Width of the large base (in mm)
13
Belt height (in mm)
8
Belt number (~ length in inches)
A 115
External length, La (in mm)
2970
Estimated length, Lp/Ld/Lw (in mm)
2950
Internal length, Li (in mm)
2920
Operating temperature
from -25°C to +100°C
Country of manufacture
India
The A 2950 Lp PIX X'set V-belt with a standard profile is designed for use in drives of machine tools, various equipment and mechanisms, compressors, vibrating plates and machines. The drive belt is made in the shape of a trapezoid, thanks to this shape, the transmitted torque is much greater than when using flat belts. The belt can withstand heavy loads, does not require much maintenance and is made of rubber-fabric material. Transmitted power up to 80 kW, permissible linear speed up to 30 m/s.
