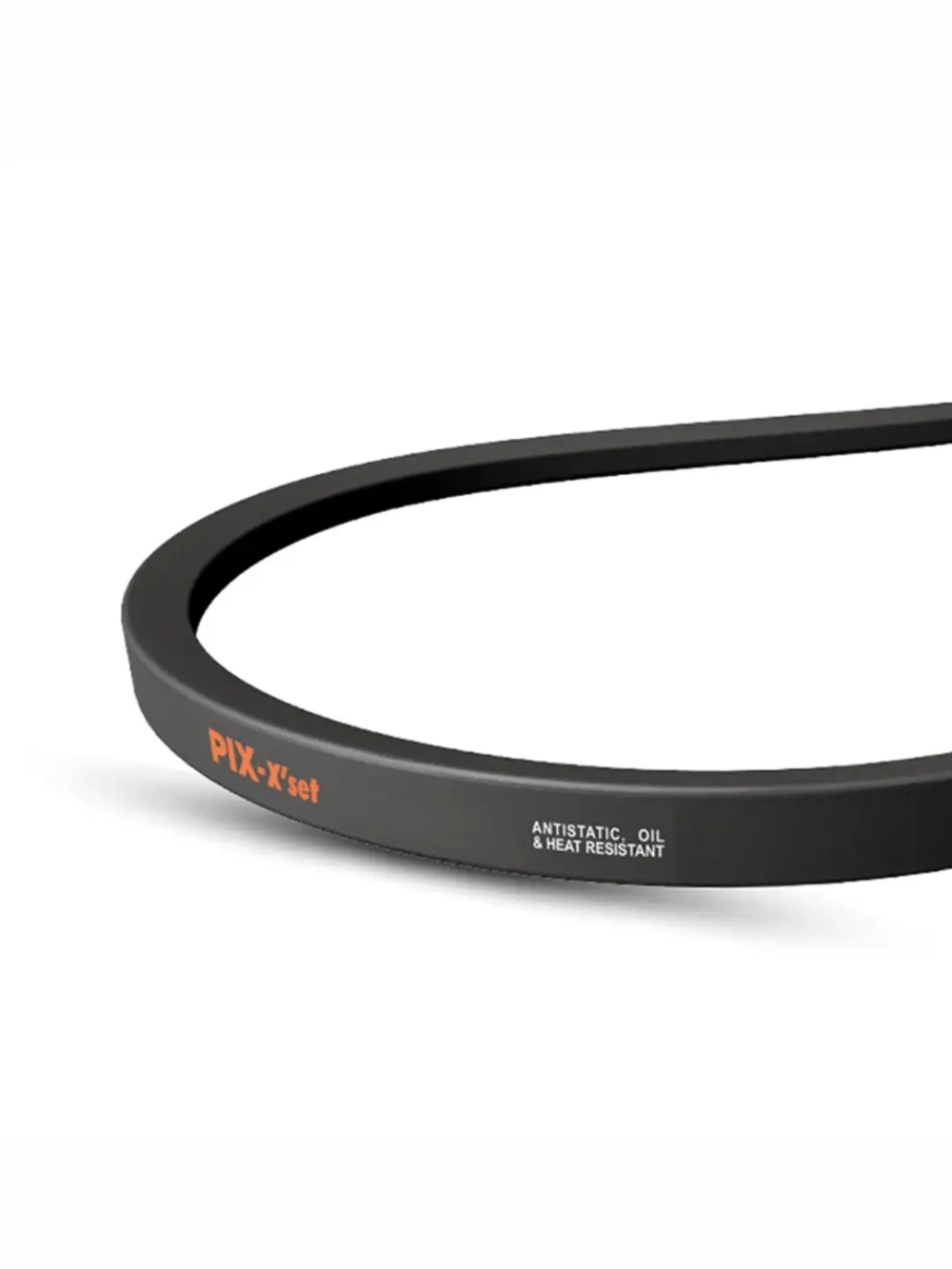

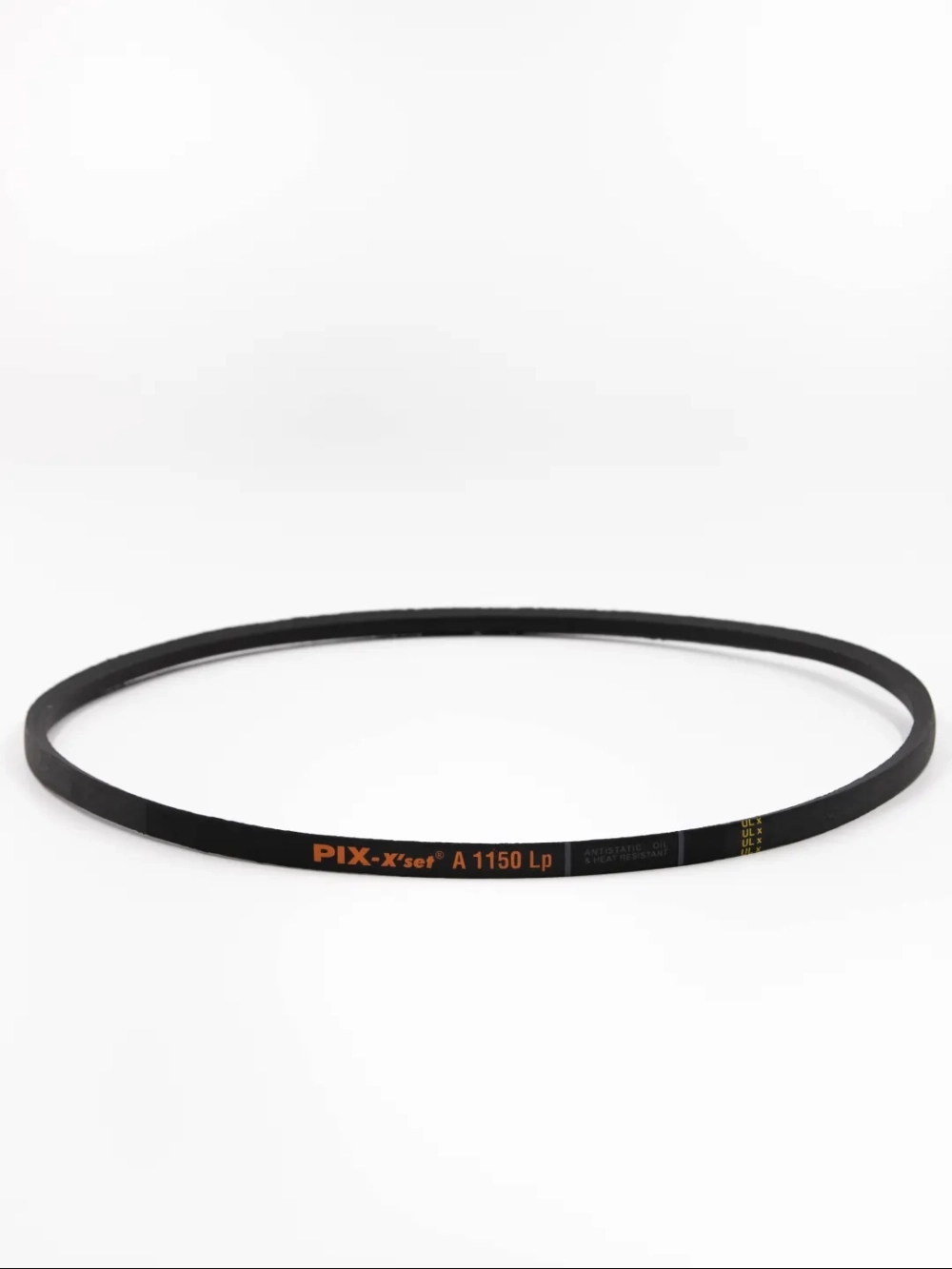

V-belt A 1150 Lp PIX X'set
26 880 UZS
Quantity
About the product:
Brend
PIXBelt profile
A

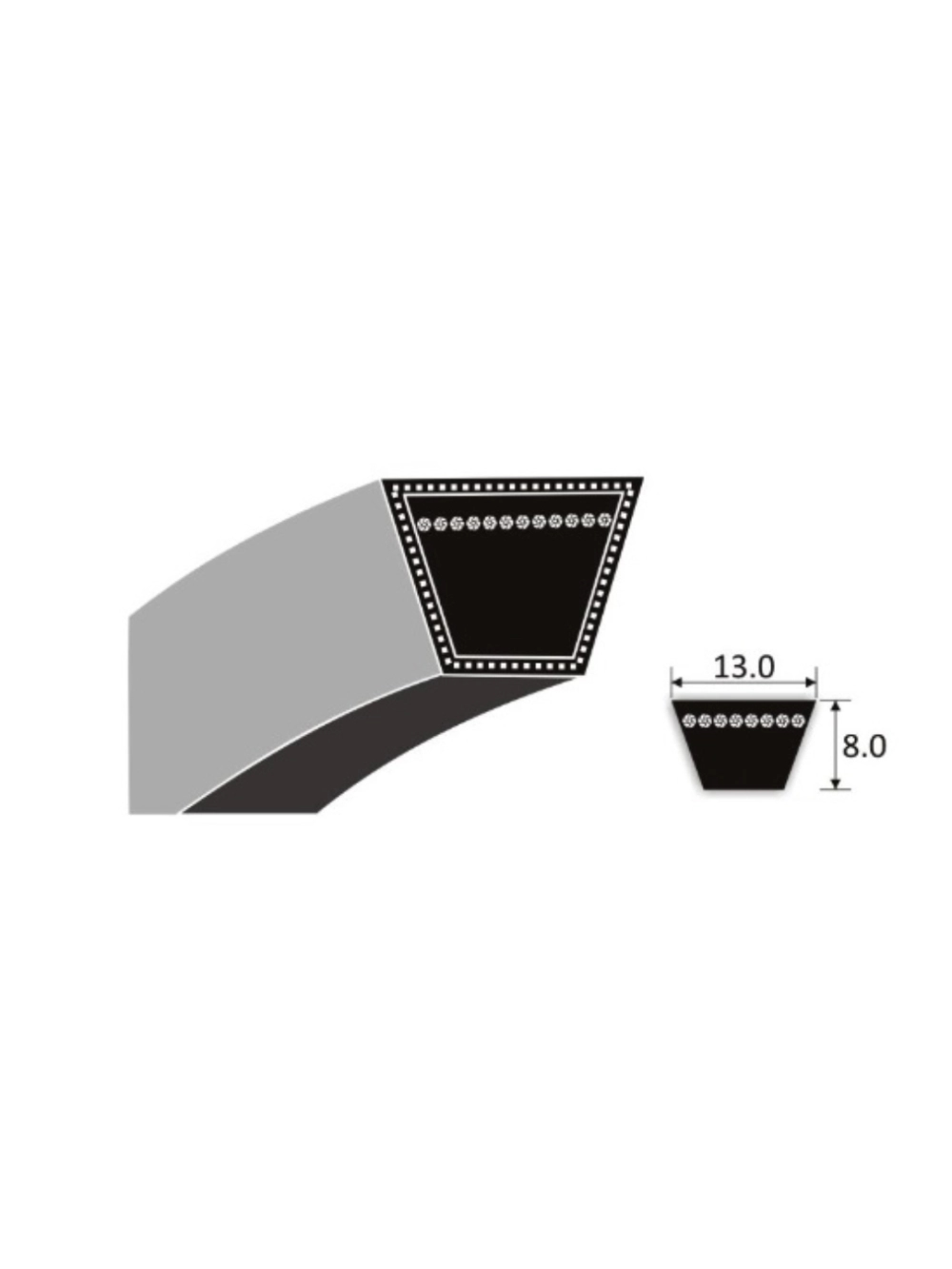

Width of the large base (in mm)
13
Belt height (in mm)
8
Belt number (~ length in inches)
A 44
External length, La (in mm)
1170
Estimated length, Lp/Ld/Lw (in mm)
1150
Internal length, Li (in mm)
1120
Operating temperature
from -25°C to +100°C
Country of manufacture
India
The A 1150 Lp PIX X'set V-belt with a standard profile is designed for use in drives of machine tools, various equipment and mechanisms, compressors, vibrating plates and machines. The drive belt is made in the shape of a trapezoid, thanks to this shape, the transmitted torque is much greater than when using flat belts. The belt can withstand heavy loads, does not require much maintenance and is made of rubber-fabric material. Transmitted power up to 80 kW, permissible linear speed up to 30 m/s.
